$10,120.00 – $12,760.00Price range: $10,120.00 through $12,760.00 incl. GST

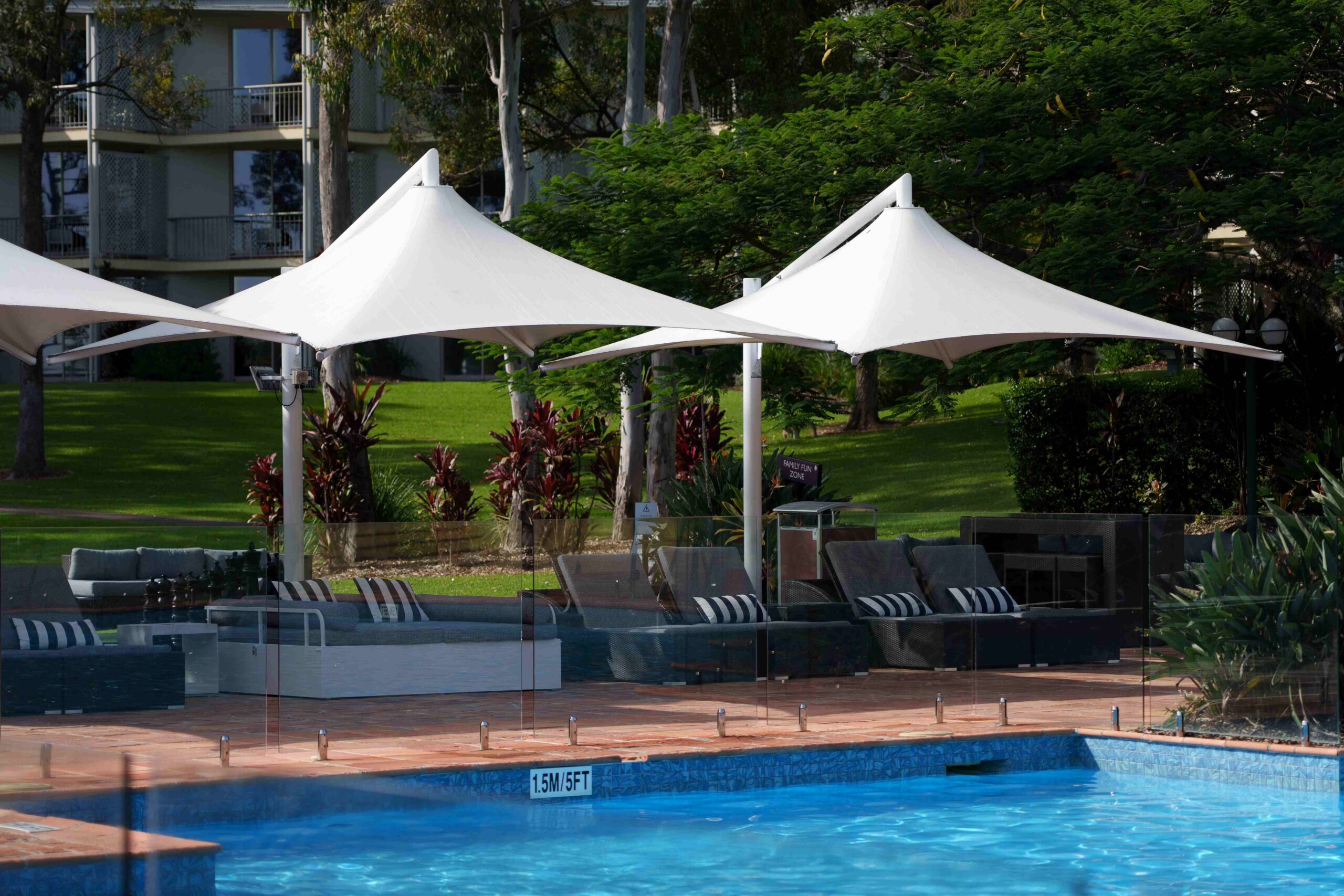

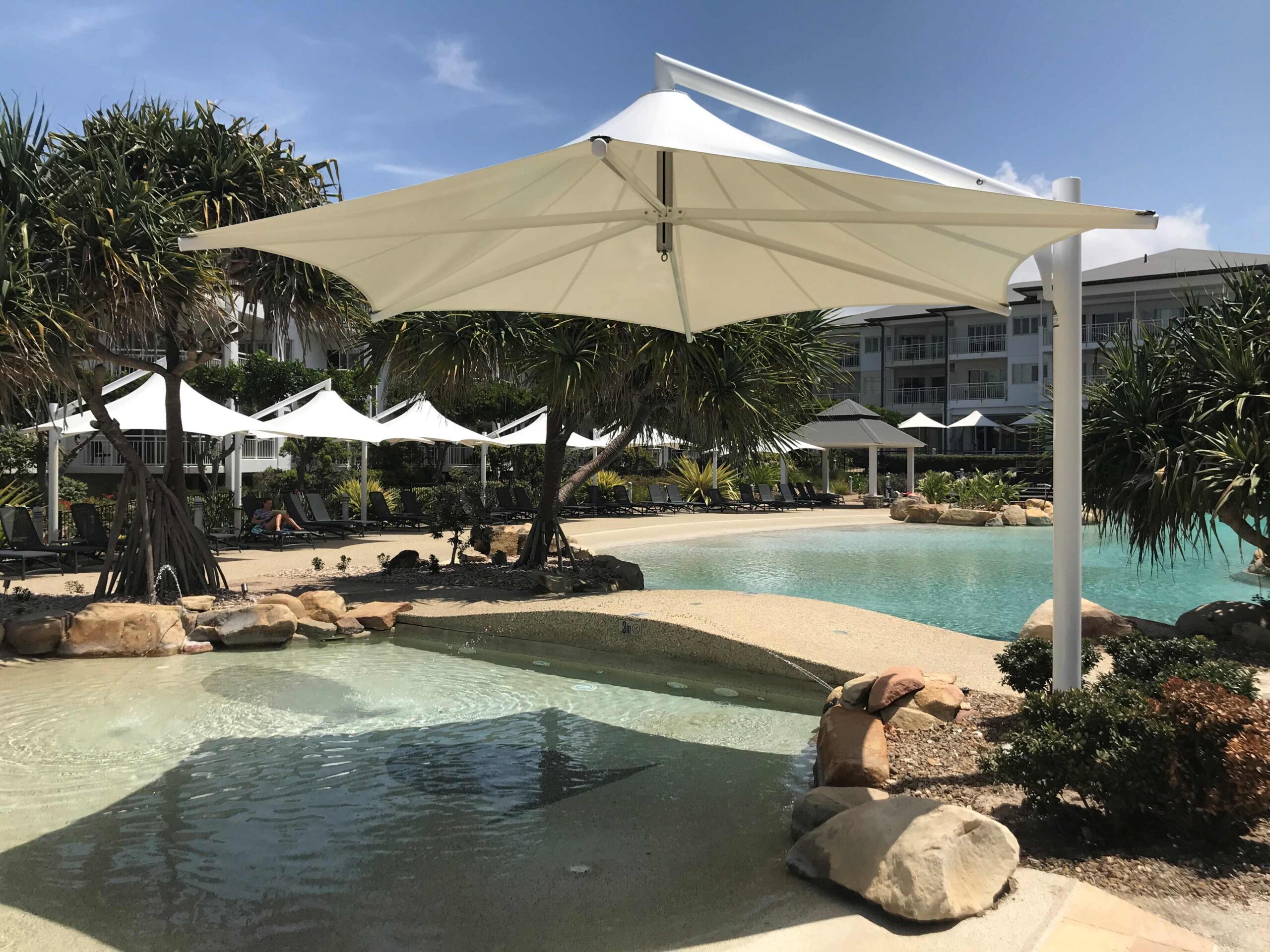

The ultimate in premium outdoor shade, the Skyspan Shade Vista is a heavy-duty cantilevered retractable umbrella. Engineered to stand up in th emost testing conditions, up to 148km/h winds, yet so easy to retract and rotate. Ideal for spaces where clear space under the canopy is preferred. The optional 360 degree rotating base is perfect for utilising the shade at varying times of the day or for covering more than one area.
Wholesale enquiry?
About Vista KE Test

Precision engineered for lasting strength

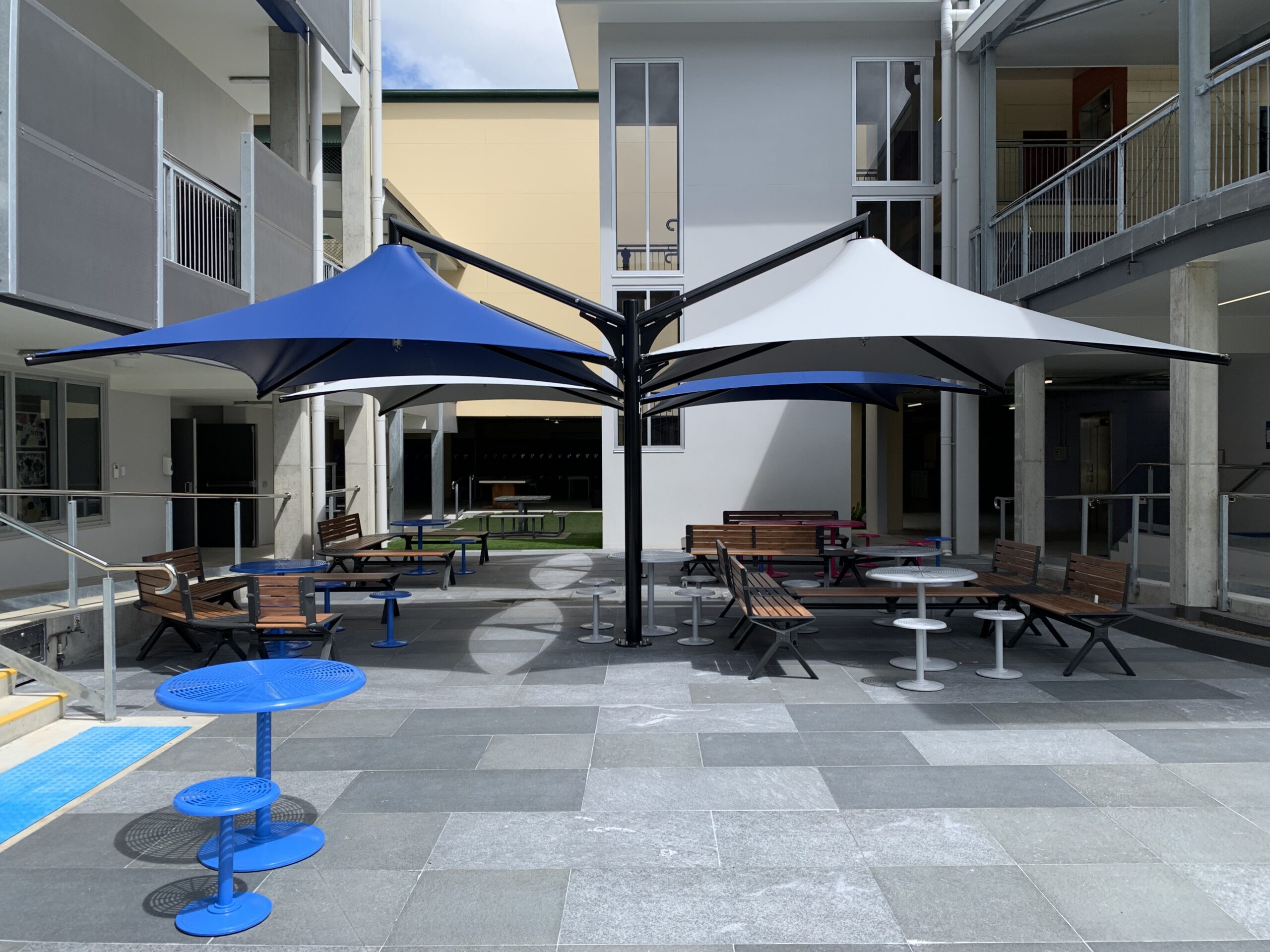

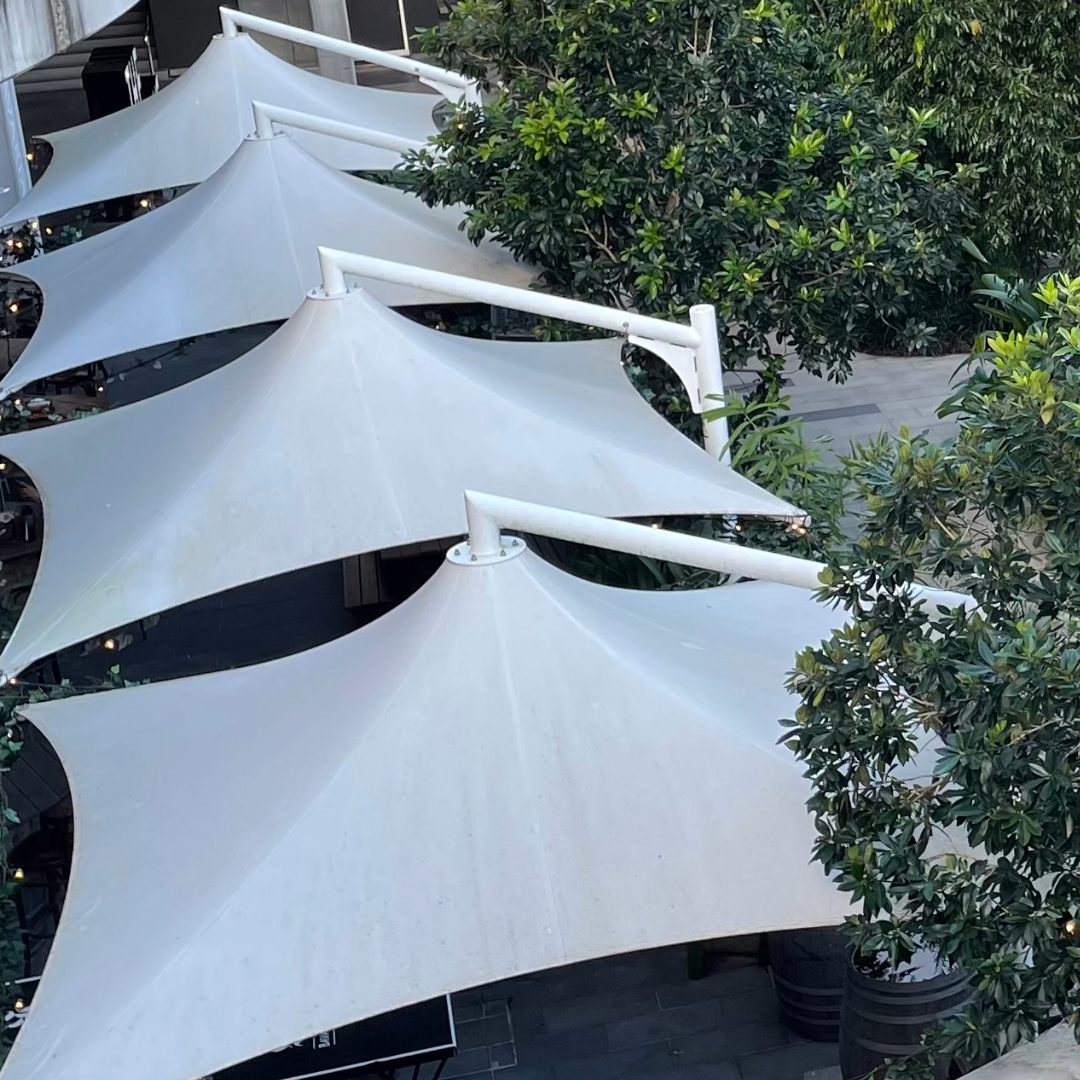

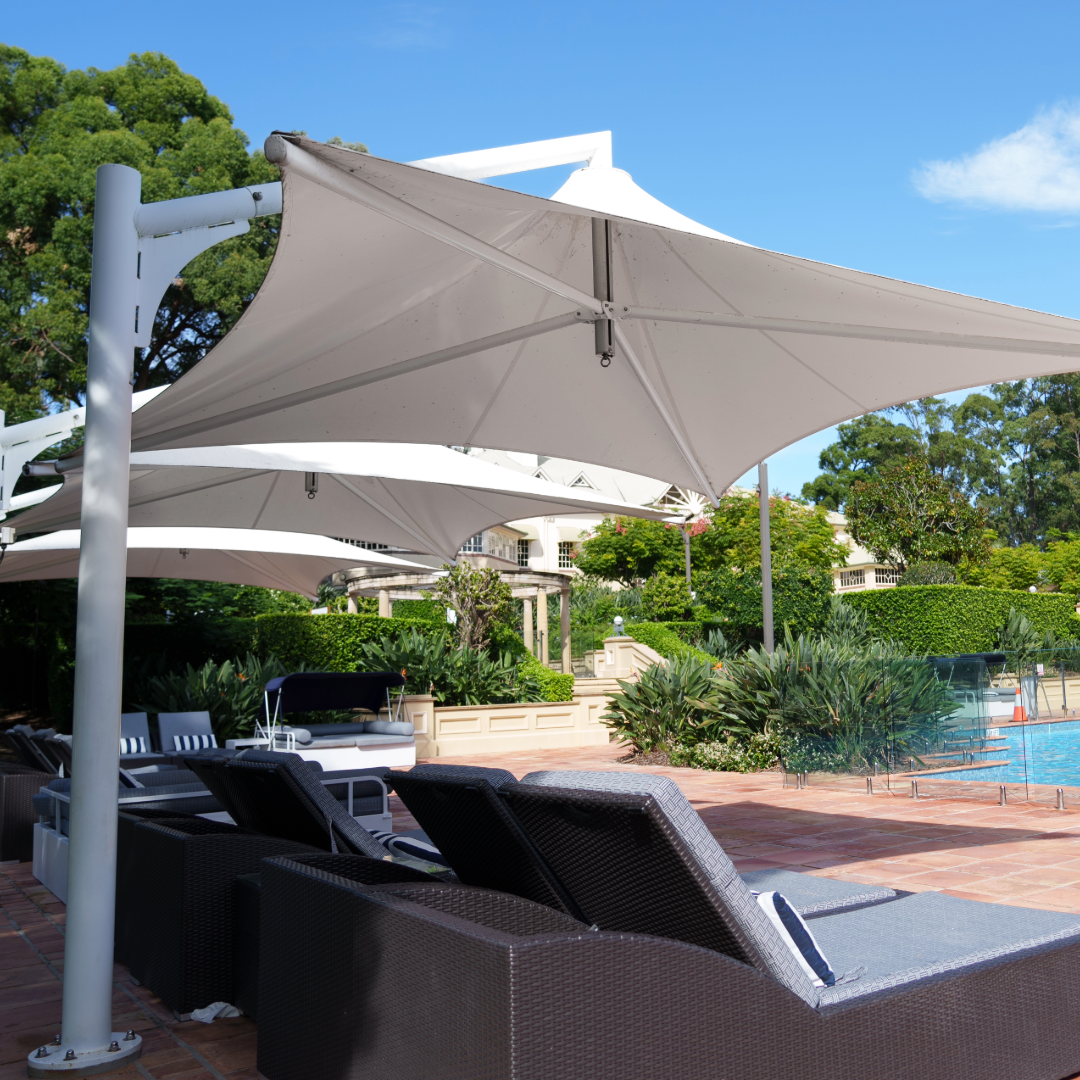

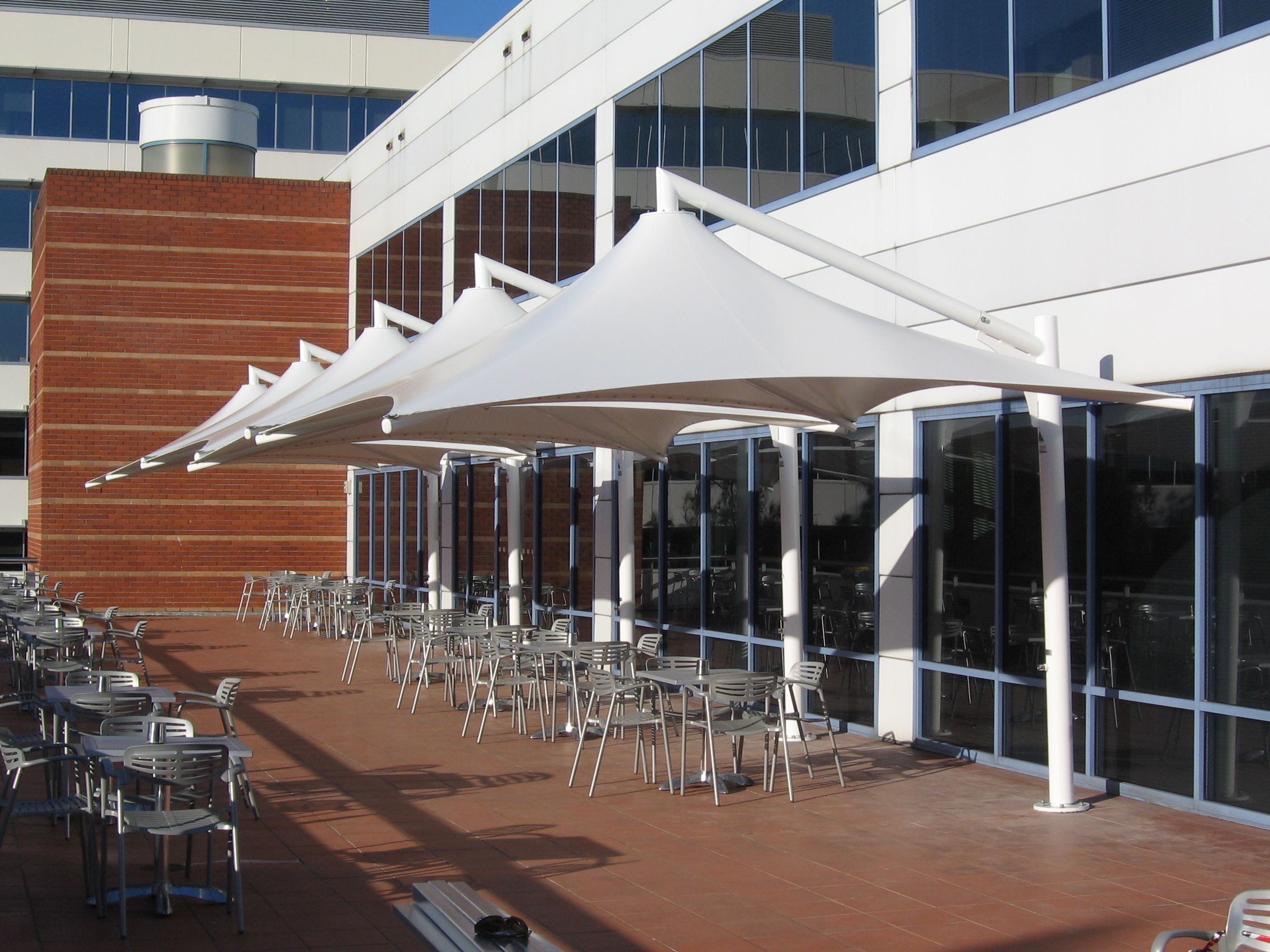

Purpose built to perform outdoors, the Vista’s open canopy has been engineered to withstand wind speeds up to an impressive 118kph open, 148kph closed. With the addition of extra booms, suspend up to 4 canopies off a single column maximising your clear space undercover.
Effortless retraction

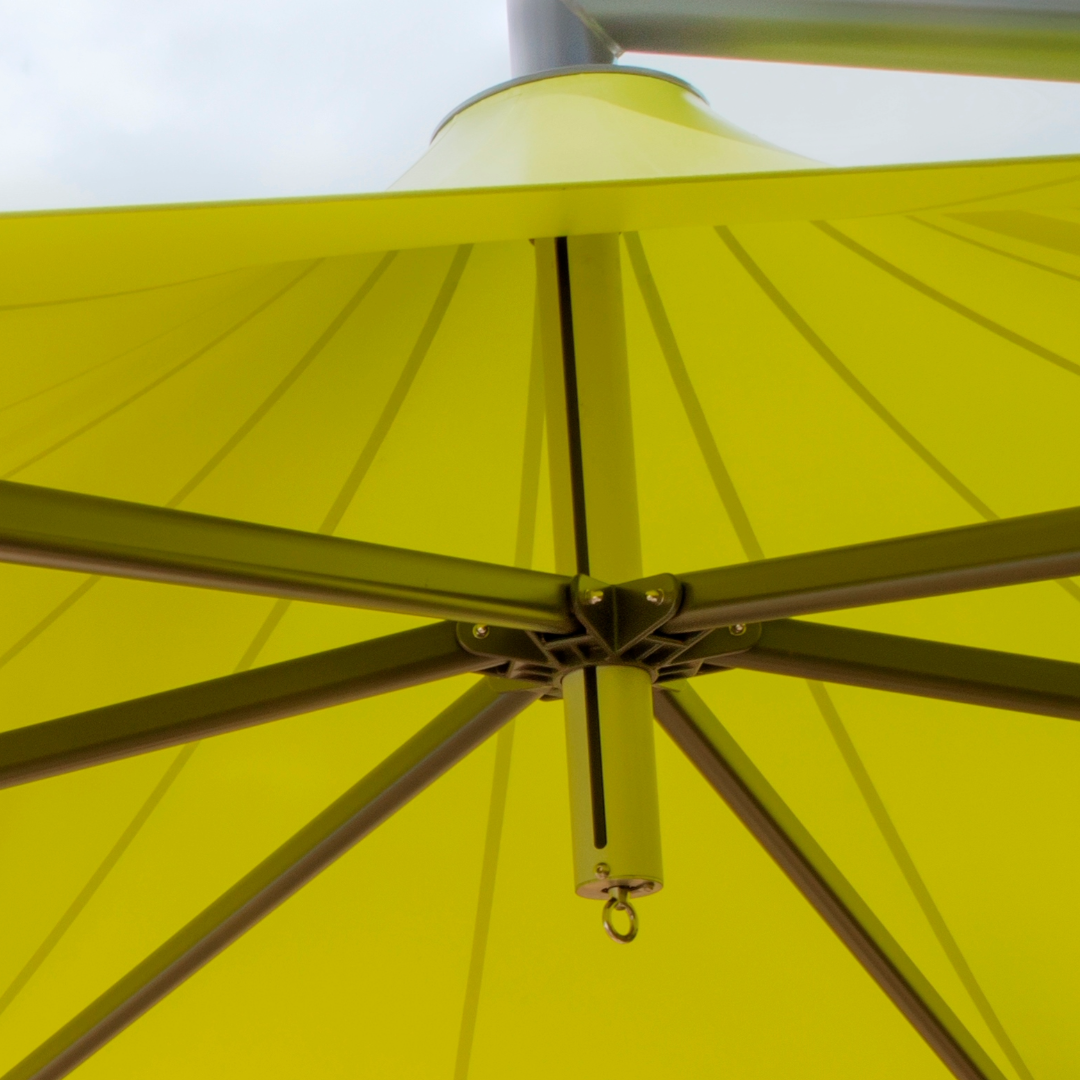

The Vista has a sophisticated robust internal gearing system allows the swift and easy operation of the umbrella. A simple hand wound handle connects with a robust internalised gearing system, for quick and efficient operation of any sized canopy.An optional rotational base rotates the canopy a full 360° to follow the sun throughout the day.
Secure installation
Weighing over 300kg the Vista has been designed for permanent installation outdoors. 5 year structural warranty on the frame & 2 year canopy warranty.
Superior UV protection and durablity

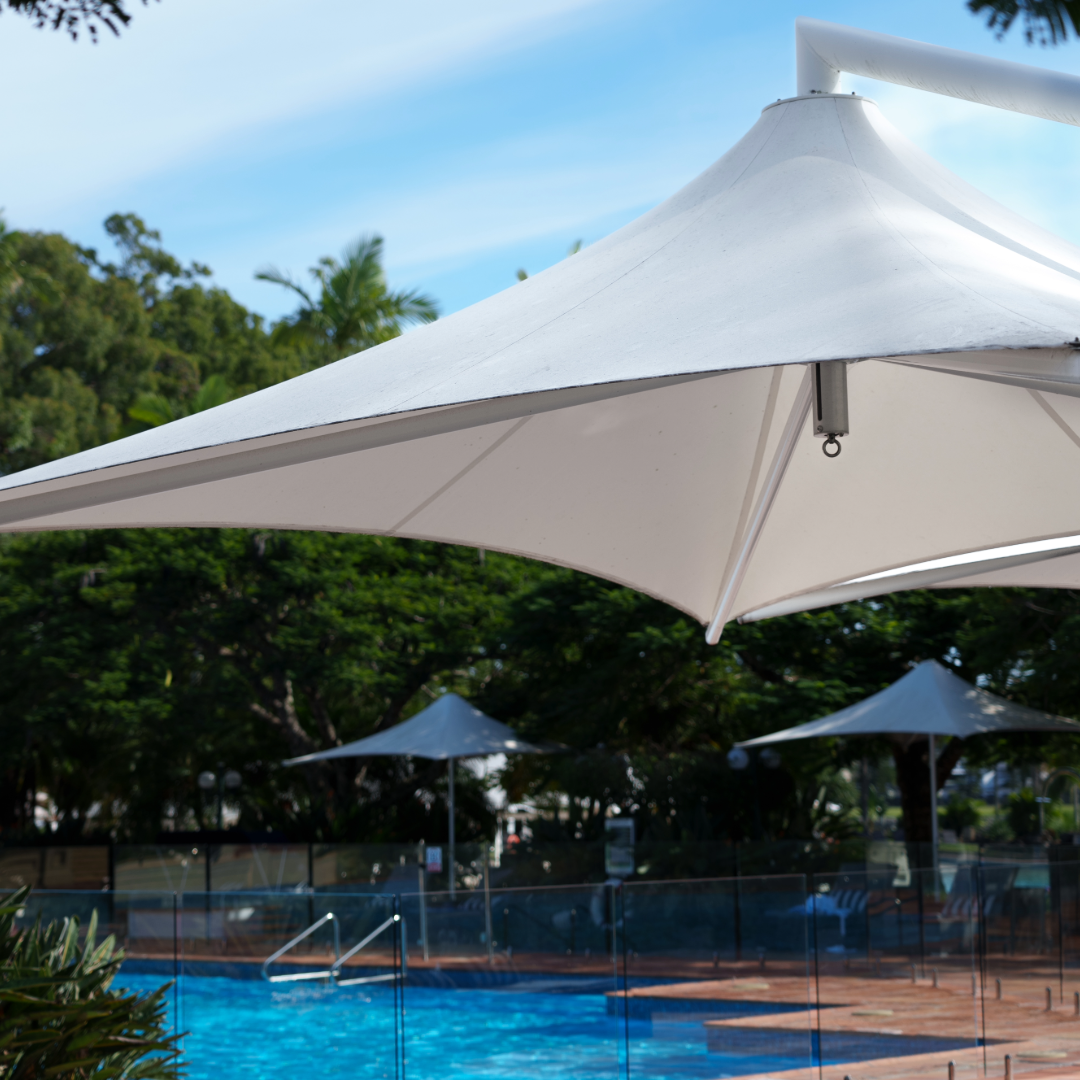

An architectural grade, high tensile Serge Ferrari PVC adds strength and style to the canopy. Purposefully designed for umbrellas, the canopy is pre-tensioned to prevent stretching and tearing after continuous use. The fabric has a distinctive smooth finish that is waterproof, heat reflective, and UV treated, keeping customers dry, cool and sun-safe.Specifications
Product Specifications

| Umbrella | Umbrella Size | Packaged Weight | ||
| Clear Headroom – B | Closed – Height to Ground -C | Total Height of Column – A | Kg | |
| 2.4 x 2.4m Square | 2300mm | 1300mm | 3350mm | 300kg |
| 3.5 x 3.5m Square | 2250mm | 1000mm | 3550mm | 314kg |
| 3.0 x 3.0m Square | 2250mm | 750mm | 3555mm | 330kg |
| 4.0 x 4.0 Square | 2410mm | 600mm | 3730mm | 347kg |
| 5.0 x 5.0 Square | 2500mm | 300mm | 4153mm | 372kg |
| 4.4 Hexagonal | 2250mm | 1000mm | 3545mm | 270kg |
| 5.0 Hexagonal | 2250mm | 800mm | 3635mm | 275kg |
| 5.6 Hexagonal | 2250mm | 500mm | 3643mm | 280kg |
| 4 x 3 Rectangular | 2370mm | 800mm | 3615mm | 330kg |
Other Features
| Size | 2.4 x 2.4m Square, 3.0 x 3.0m Square, 3.5 x 3.5m Square, 4.0 x 4.0m Square, 5.0 x 5.0m Square, 4.4 Hexagonal, 5.0 Hexagonal, 5.6 Hexagonal, 4 x 3m Rectangular |
|---|---|
| Material | The Vista’s quadpro treated structural steel frame is assembled with marine grade 316 stainless steel componentry and powder coated in a colour of your choice, for a smart, easy care, finish. |
| Warranty | 2 Year Umbrella Skin, 5 Year Frame Warranty |
| Wind Resistance | 118kph open, 148kph closed |
| Column | Cantilever, optional rotational base |
| Assembly | With umbrella weights between 260 – 360kg the Vista has been designed and engineered for permanent fixed installation outdoors. |
| Maintenance | An additional PVDF coating ensures ease of cleaning making it ideal for commercial environments. A permanent UV surface treatment stabilises the colour pigment in the fabric to resist fading, and provides an Ultraviolet Protection Factor of 50+, blocking harsh UVA and UVB rays. |
Product information
Product Function
Crank Lifting with AntiSlip, Left and Right Tilting, Multi Position Up/Down, Pedal 360 Degree Rotation
Material
100% rust-resistant aluminium frame, Sunbrella Cavas Series 260g, 304 Stainless Steel Hardware
Rotation Pedal 360 Feature
The 360-degree turning is a key function sort from a cantilever umbrella. This ensures you can have UV protection from a range of different angles. Critical to this function is a quality rotation mechanism, or turning base.
Accessories
Umbrella cover included, 210g solution dyed polyester with PU coating
FAQs
What wind strength can these umbrellas handle?
Engineered wind rating is from 118km/h up to 148km/h. That’s W31 up to W41. This umbrella can be left up most of the time. If you are facing a significant weather event, then we recommend you retract them. The longevity of the canopy is best when it is left up, at the appropriate tension.
Can you do canopy branding?
Yes we do branding on our commercial range. Once you have selected your canopy size and shade, share with us your design or logo, and we can arrange a digital printing quote
What are the colour & branding options
Both Frame and canopy are available in an extensive range of colours to compliment your outdoor space. A professional direct to canopy print service allows you to promote your brand on your umbrella with high quality, colour fast inks for accurate colour matching and resistance to fading.
