The Skyspan Shade Typhoon umbrella is both stylish, secure and structurally sound to withstand exteme weather. Living up to its name the Typhoon’s fixed frame has support struts to reinforce the arms, enabling it to withstand high wind loads up to 148kph.
Wholesale enquiry?
About Typhoon Heavy Duty Commercial Umbrella
Precision engineered for lasting strength

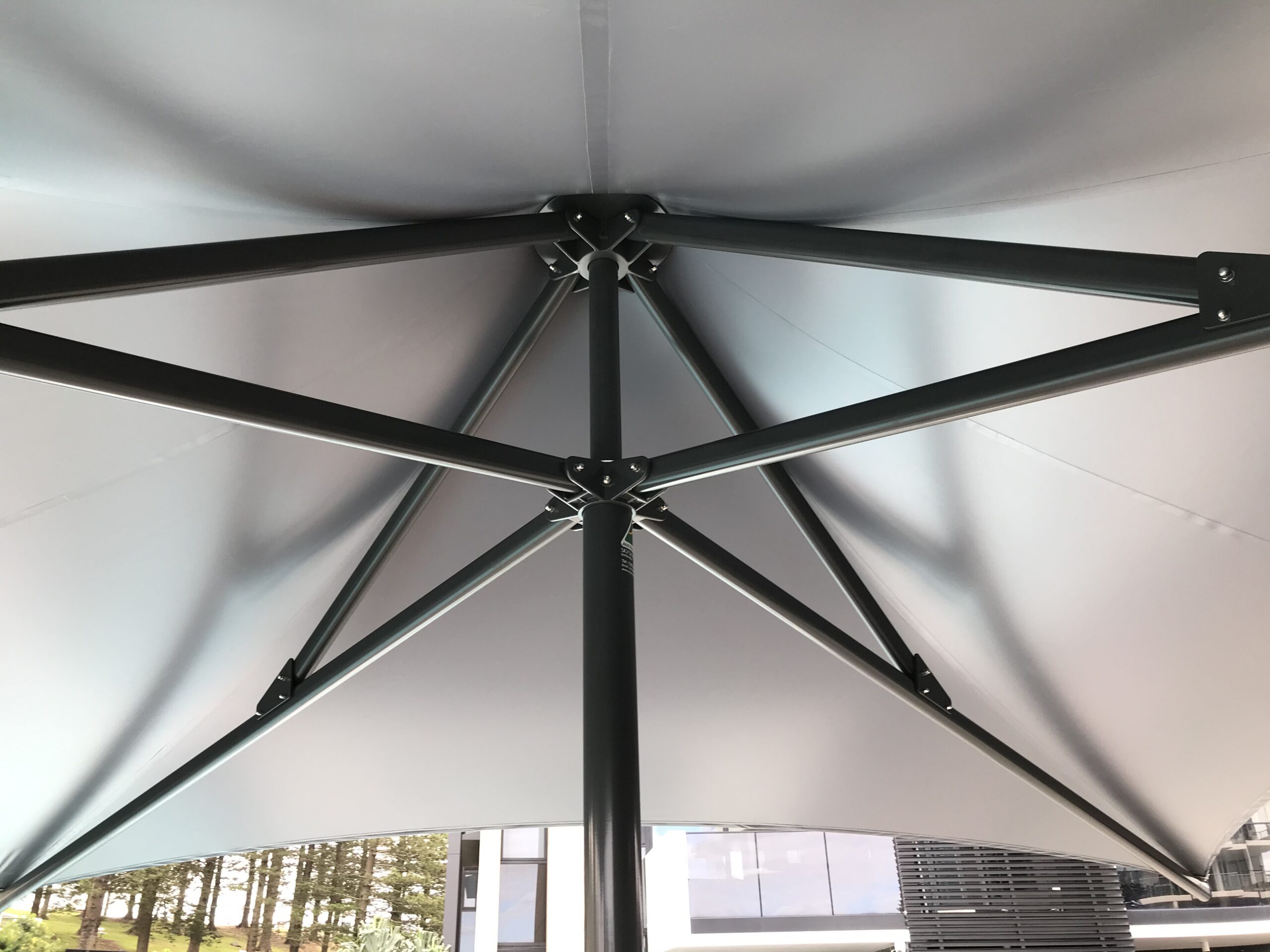

The Typhoon’s robust reinforced strut design makes this architectural umbrella engineered to withstand winds up to 148kph. Ideal for challenging wind prone or exposed environments.
Secure installation
Weighing over 100kg the Typhoon has been designed for permanent installation outdoors, but can be fitted with a weighted Skyspan Cube base and caster system to enable re-positioning of the umbrella. 10 year frame anti rust policy, 5 year structural warranty on the frame & 5 year canopy warranty.
Superior UV protection and durablity
An architectural grade, high tensile Serge Ferrari PVC adds strength and style to the canopy. Purposefully designed for umbrellas, the canopy is pre-tensioned to prevent stretching and tearing after continuous use. The fabric has a distinctive smooth finish that is waterproof, heat reflective, and UV treated, keeping customers dry, cool and sun-safe.Specifications
Product Specifications
| Umbrella | Umbrella Size | Packaged Weight | |||
| Dimensions | Clear Headroom – B | Height – A | Kg | ||
| 2.4 x 2.4m Square | 2380 x 2380mm | 2250mm | 3410mm | 110kg | |
| 3.0 x 3.0m Square | 3130 x 3130mm | 2250mm | 3340mm | 120kg | |
| 3.5 x 3.5m Square | 3470 x 3470mm | 2250mm | 3285mm | 130kg | |
| 4.0 x 4.0 Square | 3990 x 3990mm | 2250mm | 3480mm | 135kg | |
| 4.4 Hexagonal | 3830 x 4415mm | 2250mm | 3325mm | 140kg | |
| 5.0 Hexagonal | 4310 x 4960mm | 2250mm | 3350mm | 140kg | |
| 5.6 Hexagonal | 4880 x 5610mm | 2270mm | 3445mm | 160kg | |
| 4 x 3 Rectangular | 2950 x 3950mm | 2370mm | 3400mm | 150kg | |
Other Features
| Size | 2.4 x 2.4m Square, 3.0 x 3.0m Square, 3.5 x 3.5m Square, 4.0 x 4.0m Square, 5.0 x 5.0m Square, 4.4 Hexagonal, 5.0 Hexagonal, 5.6 Hexagonal, 4 x 3m Rectangular |
|---|---|
| Material | A powder coated structural aluminum frame, marine grade 316 stainless steel catenary cables and componentry. |
| Warranty | 10 Year Anti Rust, 5 Year Umbrella Skin, 5 Year Frame Warranty |
| Wind Resistance | 148kph fixed open |
| Column | Center column |
| Assembly | Weighing over 110kg the Typhoon has been designed for permanent installation outdoors. |
| Maintenance | An additional PVDF coating ensures ease of cleaning making it ideal for commercial environments. A permanent UV surface treatment stabilises the colour pigment in the fabric to resist fading, and provides an Ultraviolet Protection Factor of 50+, blocking harsh UVA and UVB rays. |
Installation
- Base plate bolted and chemset on to a concrete footing/slab for permanent installation
- Under deck plate for deck mounted installation
- Concrete weighted portable base with casters
- Approved for owner install, or via a tradesperson, Skyspan certified installers and network partners.
Other Umbrella Options
-
Hotels and Resorts, Cantilever, Education, Hospitality and Cafes, Public Spaces and Parks

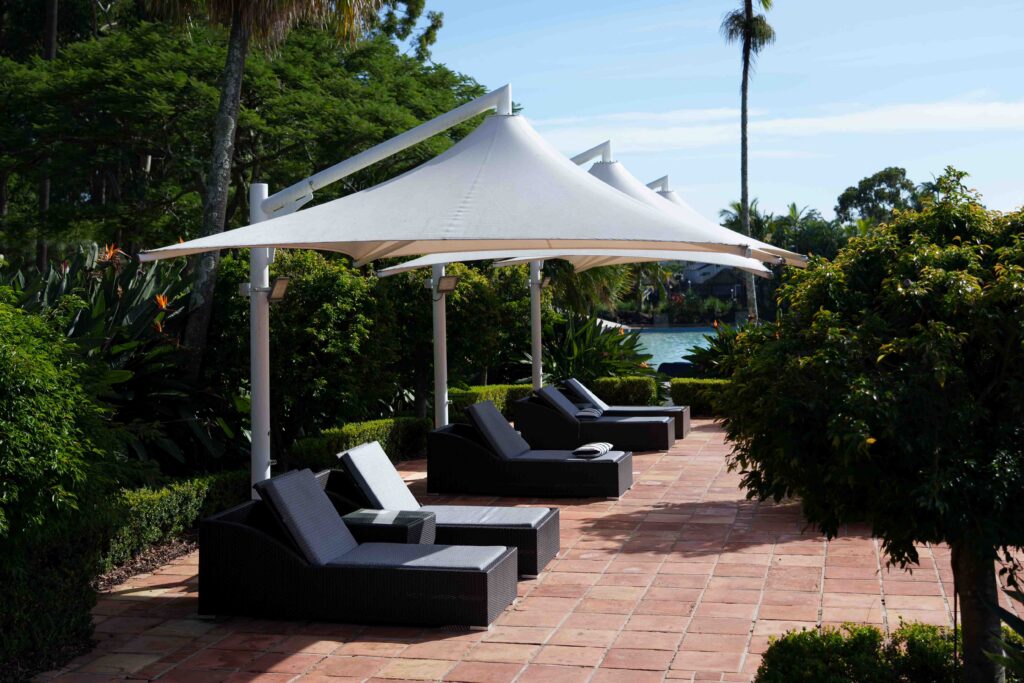

Vista Cantilever Retractable
Select options This product has multiple variants. The options may be chosen on the product page -
Commercial and Tourism Venues, Hospitality and Cafes, Residential and Apartments

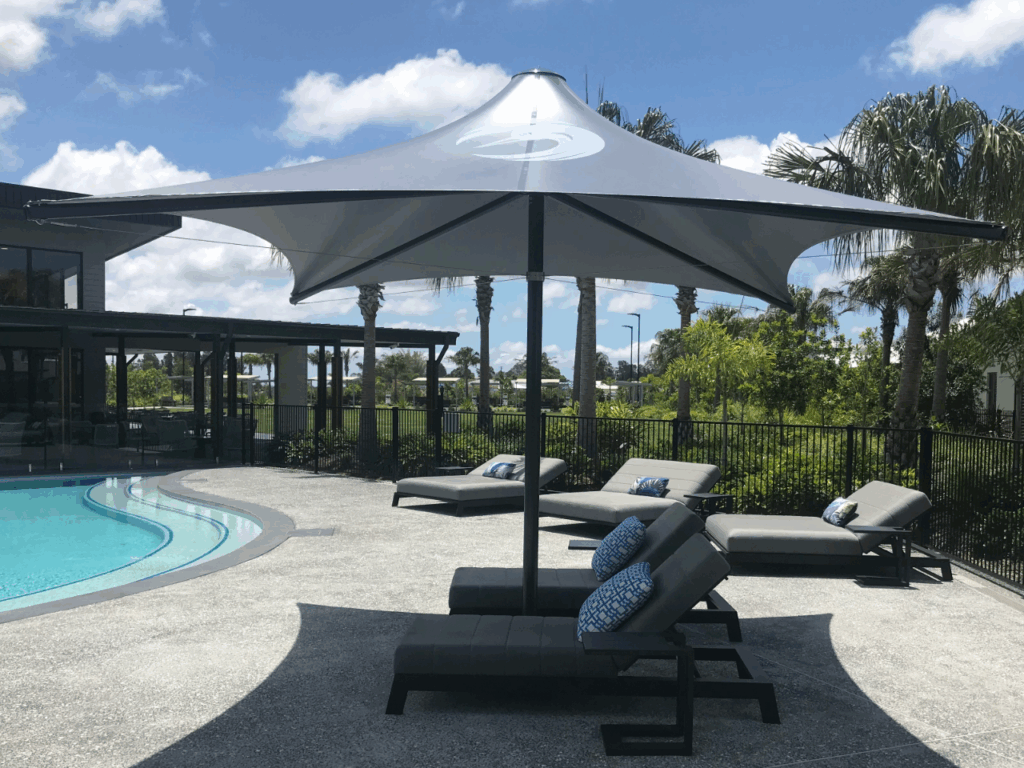

Horizon Commercial Umbrella
Select options This product has multiple variants. The options may be chosen on the product page -
Aquatic centres and stadiums, Commercial and Tourism Venues, Education, Hospitality and Cafes, Hotels and Resorts, Public Spaces and Parks, Residential and Apartments, Skyspan

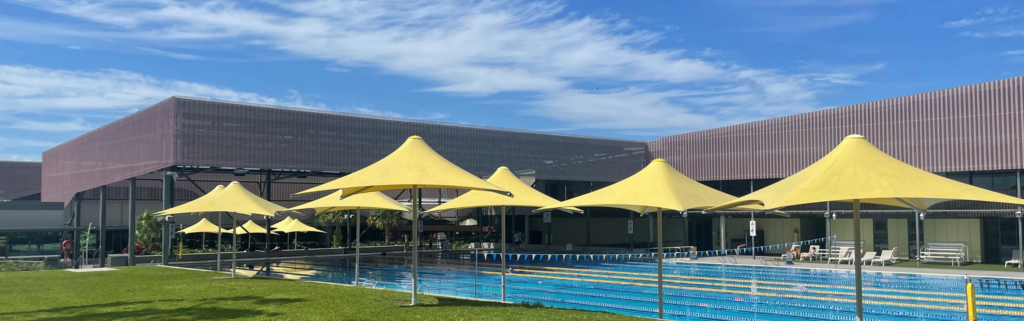

Sunset Heavy Duty Retractable Umbrella
Select options This product has multiple variants. The options may be chosen on the product page
FAQs
What wind strength can the Typhoon umbrellas handle?
The Typhoon centre-column non-retractable umbrella has an engineered wind rating of 148kph. The Typhoon has reinforced struts enabling it to withstand high wind speeds 148kph when open. Typhoon remains open and in place permanently, with no need to retract in challenging wind prone or exposed environments.
Can you do canopy branding?
Yes we do branding on our commercial range. Once you have selected your canopy size and shade, share with us your design or logo, and we can arrange a digital printing quote
What are the colour & branding options
Both Frame and Canopy are available in an extensive range of colours to compliment your outdoor space. A professional direct-to -canopy print service allows you to promote your brand on your umbrella with high quality, colour fast inks for accurate colour matching and resistance to fading.
