The Sunset retractable centre column umbrella is heavy duty, withstanding wind speeds up to 118km/h, making it one of the strongest centre column retractable umbrellas available.
Wholesale enquiry?
About Sunset Heavy Duty Retractable Umbrella

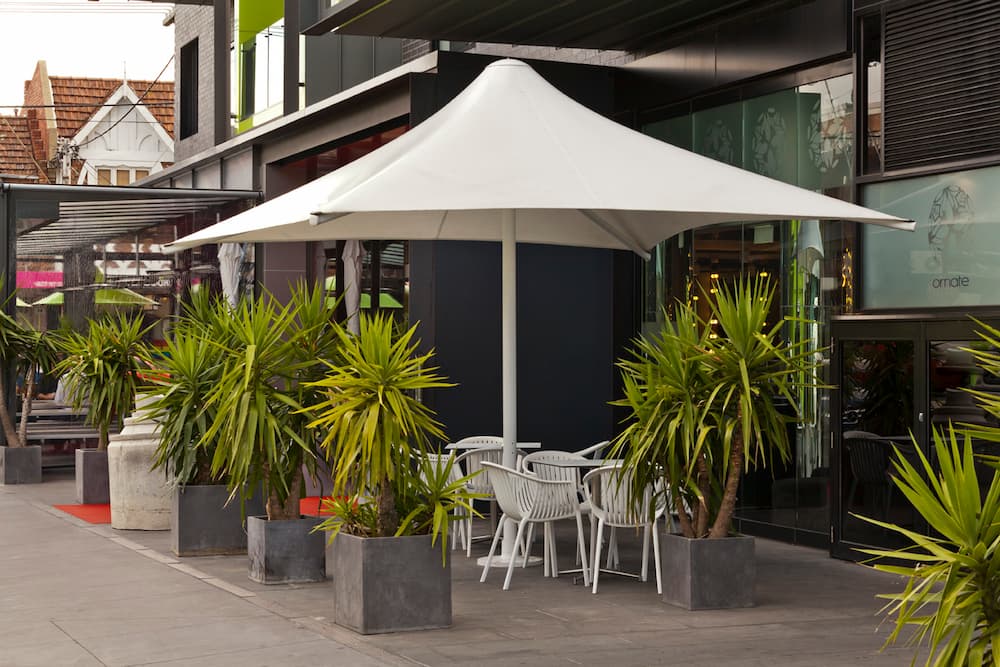

The Skyspan Shade Sunset Retractable Umbrella

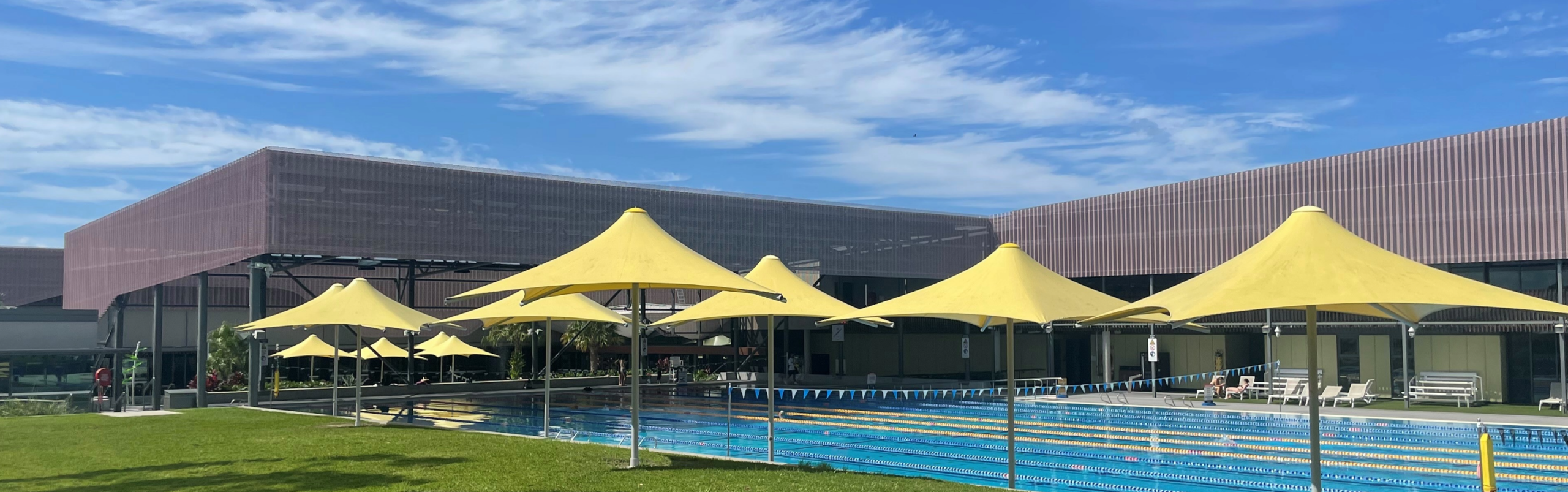

This is a versatile all-round umbrella ideal to cover any scenario, popular with aquatic centres, resorts, cafes, and hotels. Engineered for winds up to 118km/h open and 148km/h closed, the Sunset is a true heavy-duty centre column umbrella with architectural appeal. Premium materials and classic design combine in a heavy-duty commercial umbrella purpose built to live outdoors. Available in square, rectangular and hexagonal shapes, from 2.4m up to 5.6m. The Sunset has a 10 year anti-rust aluminium warranty and 5 year frame warranty & and 2 year umbrella skin warranty.

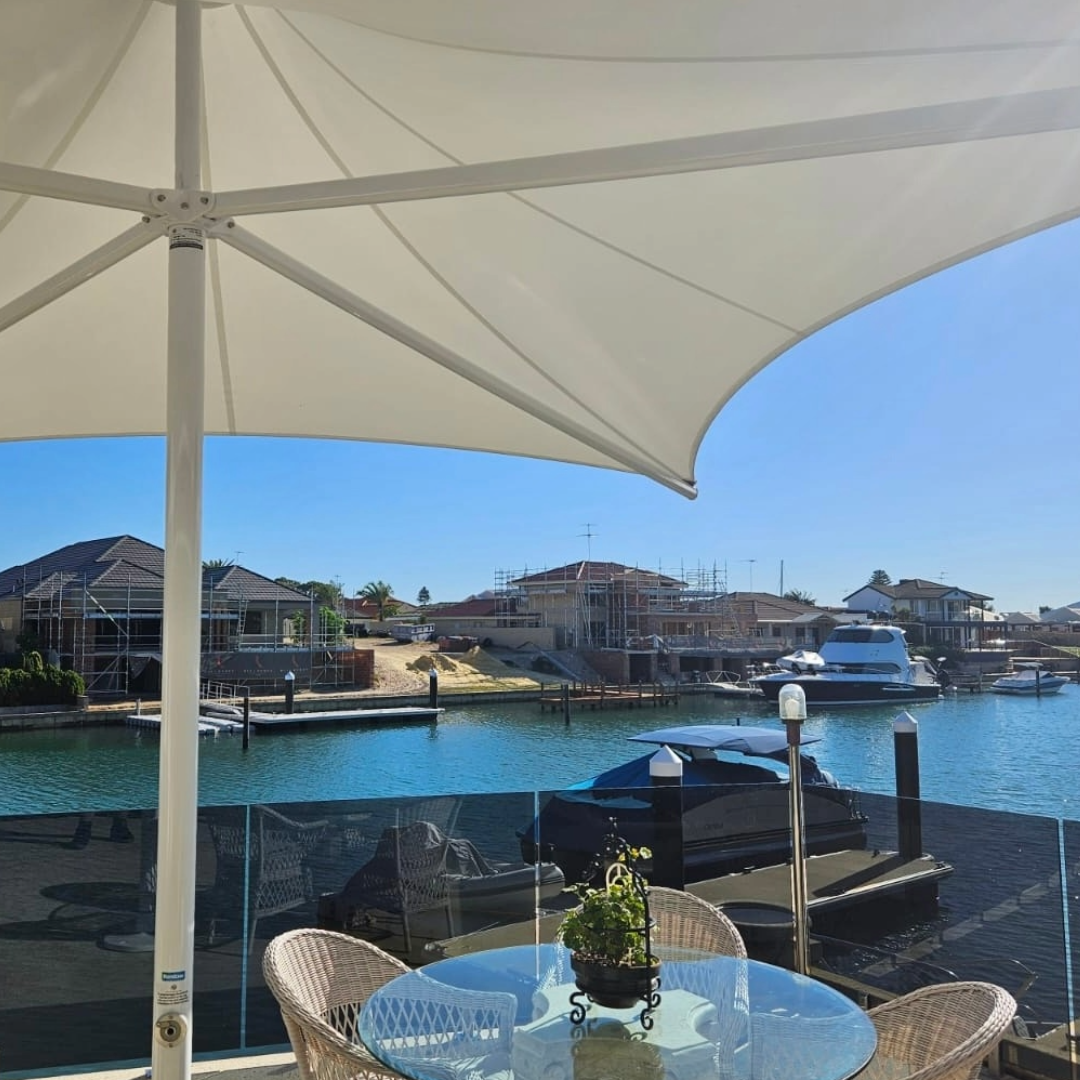

Precision engineered for lasting strength
The Sunset is engineered to withstand winds up to 118km/h when open, 148km/h when closed. Suit most commercial environment standing safe and secure in the harshest weather.

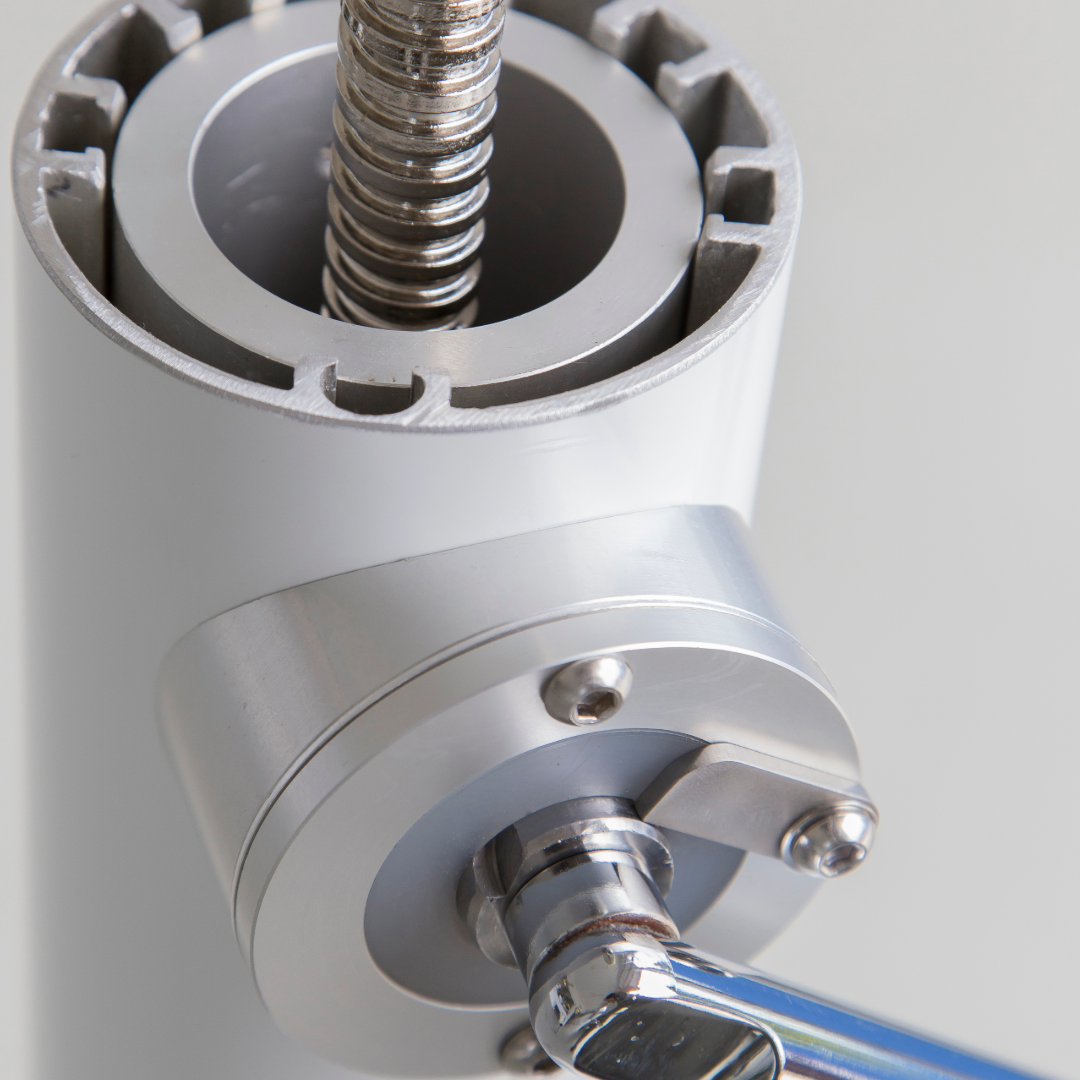

Effortless retraction
Easy to open and close, the Sunset has a proprietary internal gearing system that ensures swift & easy operation of the retractable canopy in any weather, designed for commercial use.

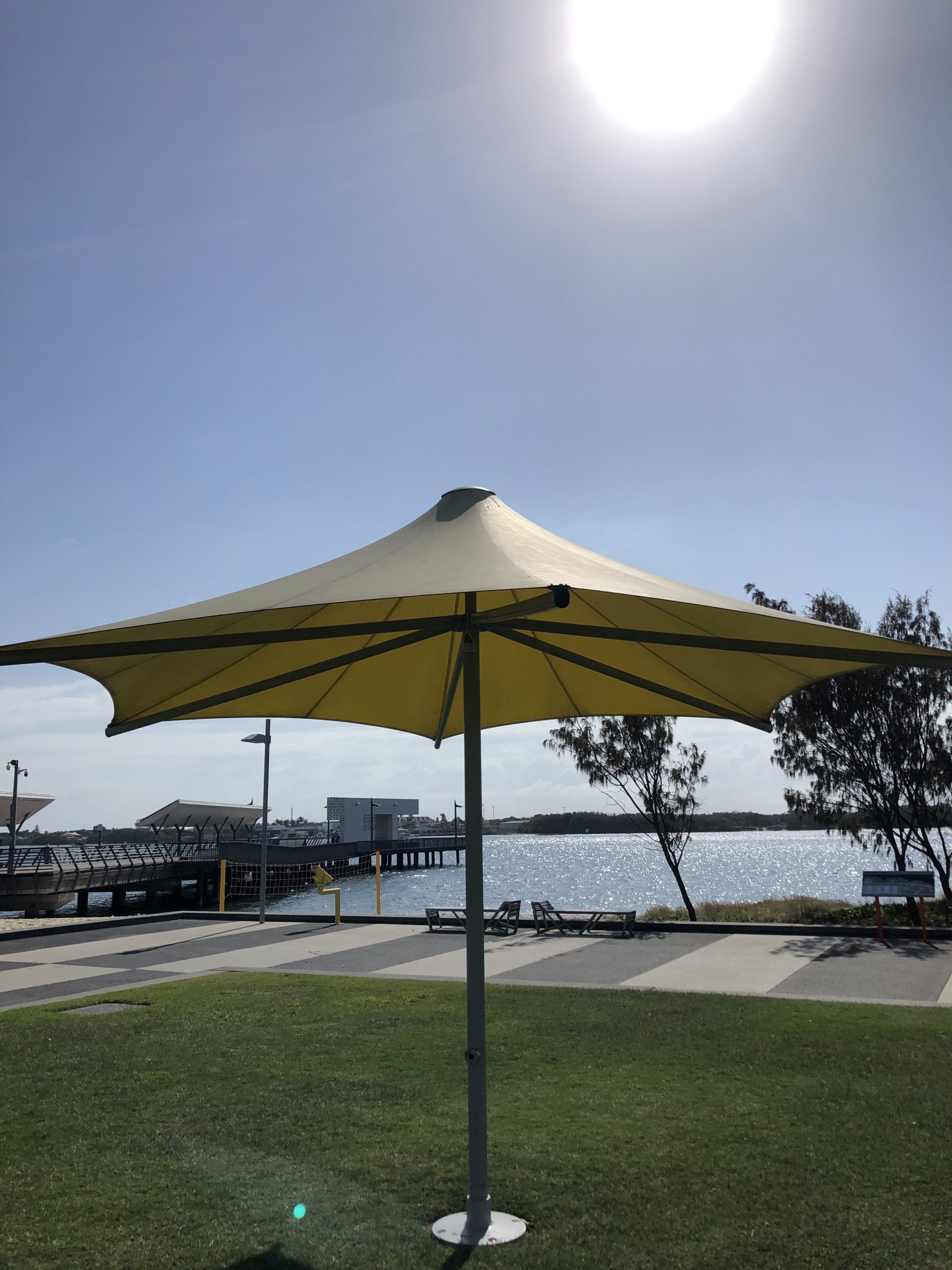

Secure installation
Weighing over 100kg the Sunset has been designed for permanent installation outdoors, but can be fitted with a weighted Skyspan Cube base and caster system to enable re-positioning of the umbrella. 10 year anti rust, 5 year frame warranty & 2 year umbrella skin warranty.

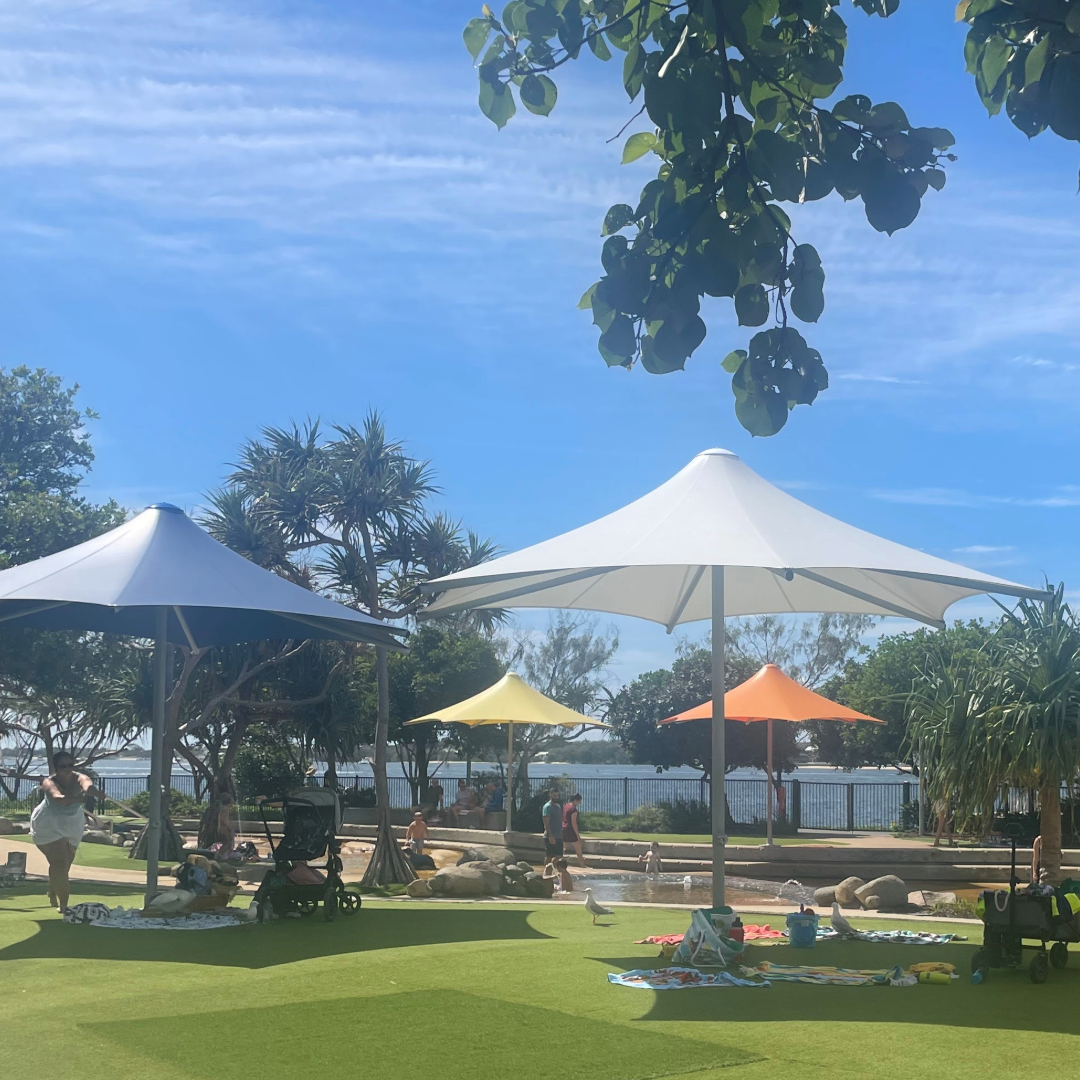

Superior UV protection and durability
An architectural grade, high tensile Serge Ferrari PVC adds strength and style to the canopy. Purposefully designed for umbrellas, the canopy is pre-tensioned to prevent stretching and tearing after continuous use. The fabric has a distinctive smooth finish that is waterproof, heat reflective, and UV treated, keeping customers dry, cool and sun-safe.Specifications
Product Specifications

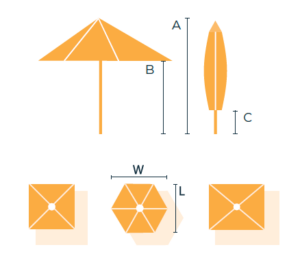

| Umbrella | Umbrella Size | Packaged Weight | |||
| Dimensions LxW | Clear Headroom – B | Height – A | Closed – Height to Ground – C | Kg | |
| 2.4 x 2.4m Square | 2380 x 2380mm | 2250mm | 3410mm | 940mm | 110kg |
| 3.0 x 3.0m Square | 3130 x 3130mm | 2250mm | 3340mm | 600mm | 120kg |
| 3.5 x 3.5m Square | 3470 x 3470mm | 2250mm | 3285mm | 270mm | 130kg |
| 4.0 x 4.0 Square | 3990 x 3990mm | 2250mm | 3480mm | 45mm | 135kg |
| 4.4 Hexagonal | 3830 x 4415mm | 2250mm | 3325mm | 540mm | 135kg |
| 5.0 Hexagonal | 4310 x 4960mm | 2250mm | 3350mm | 230mm | 140kg |
| 5.6 Hexagonal | 4880 x 5610mm | 2270mm | 3445mm | 45mm | 160kg |
| 4 x 3 Rectangular | 2950 x 3950mm | 2370mm | 3400mm | 260mm | 150kg |
Other Features
| Size | 2.4 x 2.4m Square, 3.0 x 3.0m Square, 3.5 x 3.5m Square, 4.0 x 4.0m Square, 4.4 Hexagonal, 5.0 Hexagonal, 5.6 Hexagonal, 4 x 3m Rectangular |
|---|---|
| Material | A corrosion resistant structural aluminium frame, marine grade 316 stainless steel catenary cables and componentry. |
| Warranty | 10 Year Anti-Rust Aluminium, 2 Year Umbrella Skin, 5 Year Frame Warranty |
| Wind Resistance | 118km/h open, 148km/h closed |
| Column | Centre column |
| Assembly | Weighing over 100kg the Sunset has been designed for permanent installation outdoors. |
| Maintenance | An additional PVDF coating ensures ease of cleaning making it ideal for commercial environments. A permanent UV surface treatment stabilises the colour pigment in the fabric to resist fading, and provides an Ultraviolet Protection Factor of 50+, blocking harsh UVA and UVB rays. |
Installation
- Base plate bolted and chemset on to a concrete footing/slab for permanent installation
- Under deck plate for deck mounted installation
- Concrete weighted portable base with casters
- Approved for owner install, or via a tradesperson, Skyspan certified installers and network partners.
Other Umbrella Options
-
Hotels and Resorts, Aquatic centres and stadiums, Cantilever, Commercial and Tourism Venues, Education, Hospitality and Cafes, Public Spaces and Parks
Vista Cantilever Retractable Umbrella
Select options This product has multiple variants. The options may be chosen on the product page -
Commercial and Tourism Venues, Hospitality and Cafes, Residential and Apartments
Horizon Commercial Umbrella
Select options This product has multiple variants. The options may be chosen on the product page -
Hotels and Resorts, Hospitality and Cafes, Residential and Apartments

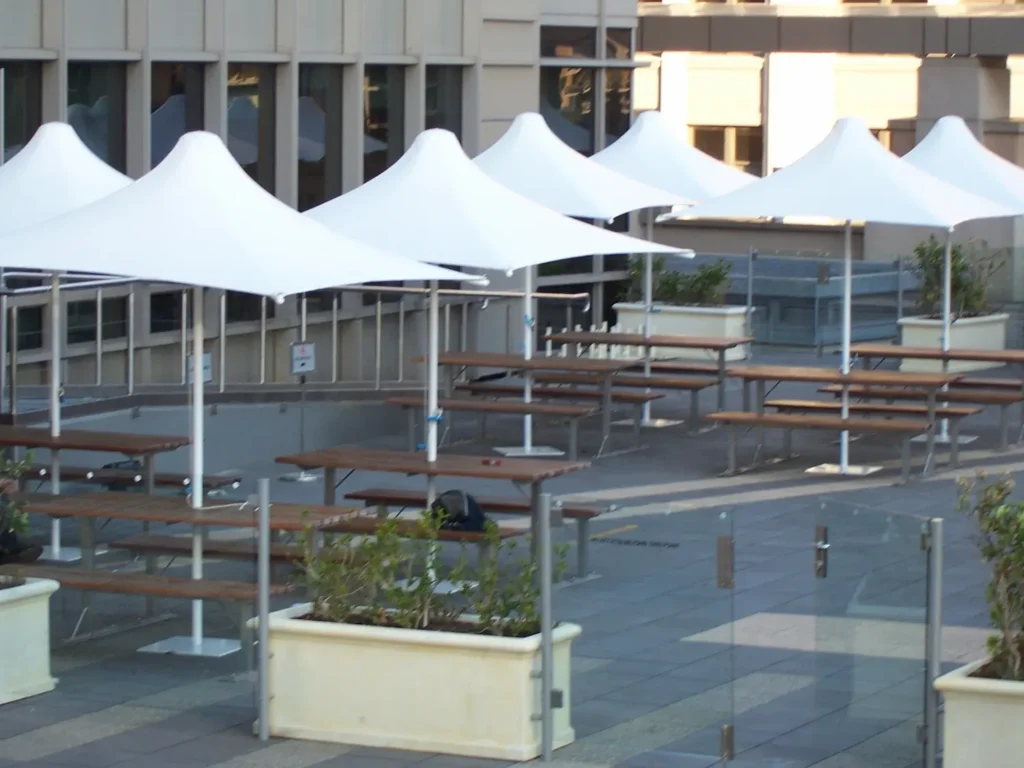

Alfresco Cafe Commercial Umbrella
Select options This product has multiple variants. The options may be chosen on the product page
FAQs
What wind strength can the Sunset umbrellas handle?
The Sunset centre-column retractable umbrella has engineered wind rating from 118km/h up to 148km/h. That’s W31 up to W41. The Sunset can be left up most of the time. If you are facing a significant weather event, then we recommend you retract them. The longevity of the canopy is best when it is left up, at the appropriate tension.
Can you do canopy branding?
Yes we do branding on our commercial range. Once you have selected your canopy size and shade, share with us your design or logo, and we can arrange a digital printing quote.
What are the colour & branding options?
Both frame and canopy are available in an extensive range of colours to complement your outdoor space. A professional direct to canopy print service allows you to promote your brand on your umbrella with high quality, colour fast inks for accurate colour matching and resistance to fading.
