The Skyspan Shade Horizon umbrella is both stylish, heavy duty and structurally sound to withstand strong winds. The Horizon range is ideal for outdoor dining, resorts and entertainment venues. The fixed frame has support on the arms, enabling it to withstand high wind loads up to 118kph. Custom made to order, both the canopy and the frame are available in a wide range of colours.
Wholesale enquiry?
About Horizon Commercial Umbrella

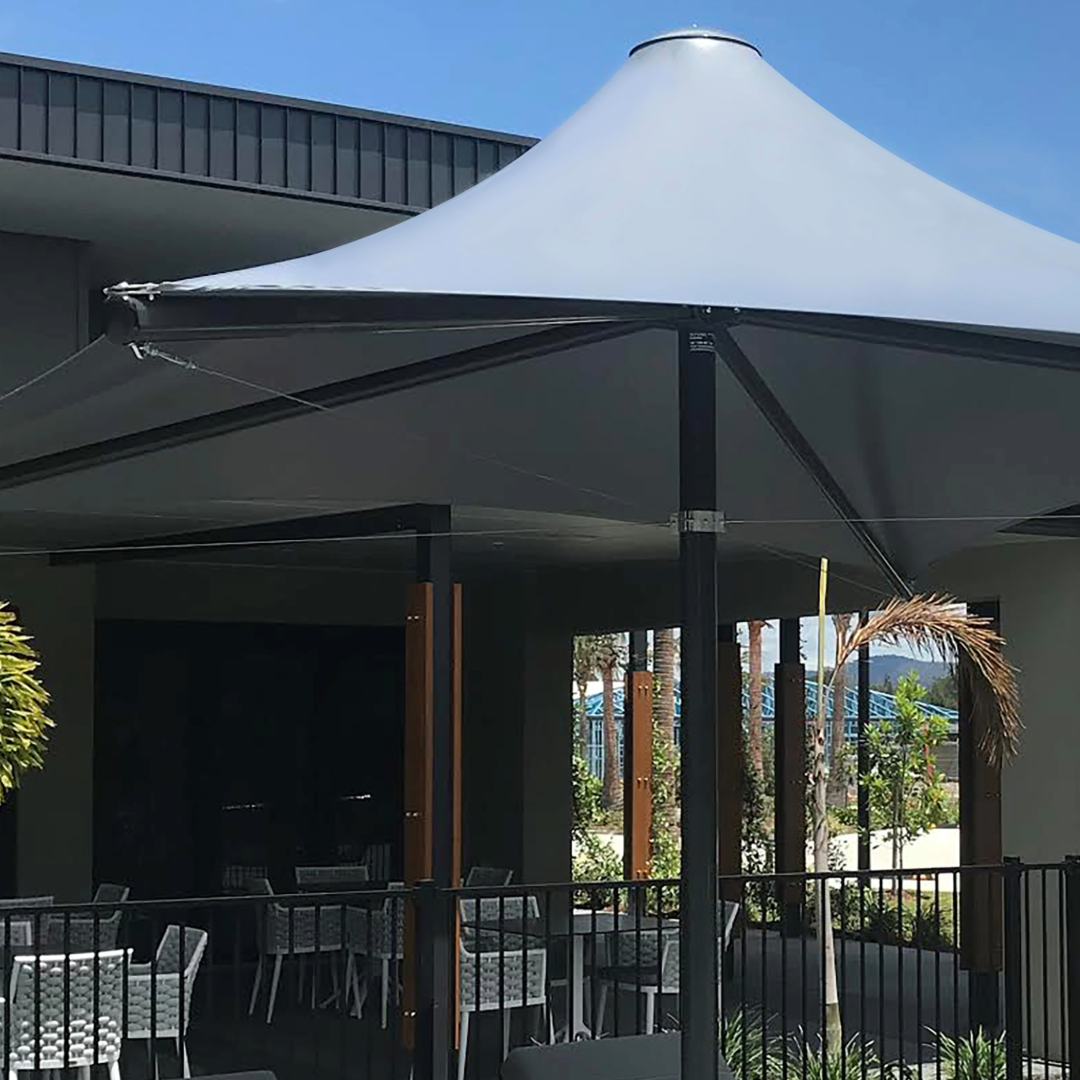

Precision engineered for lasting strength
The Horizon is engineered to withstand winds up to 118kph. Suit most commercial environment standing safe and secure in the harshest weather.
Secure installation
Weighing over 100kg the Horizon has been designed for permanent installation outdoors, but can be fitted with a weighted Skyspan Cube base and caster system to enable re-positioning of the umbrella. 10 year frame anti rust policy, 5 year structural warranty on the frame & 5 year canopy warranty.

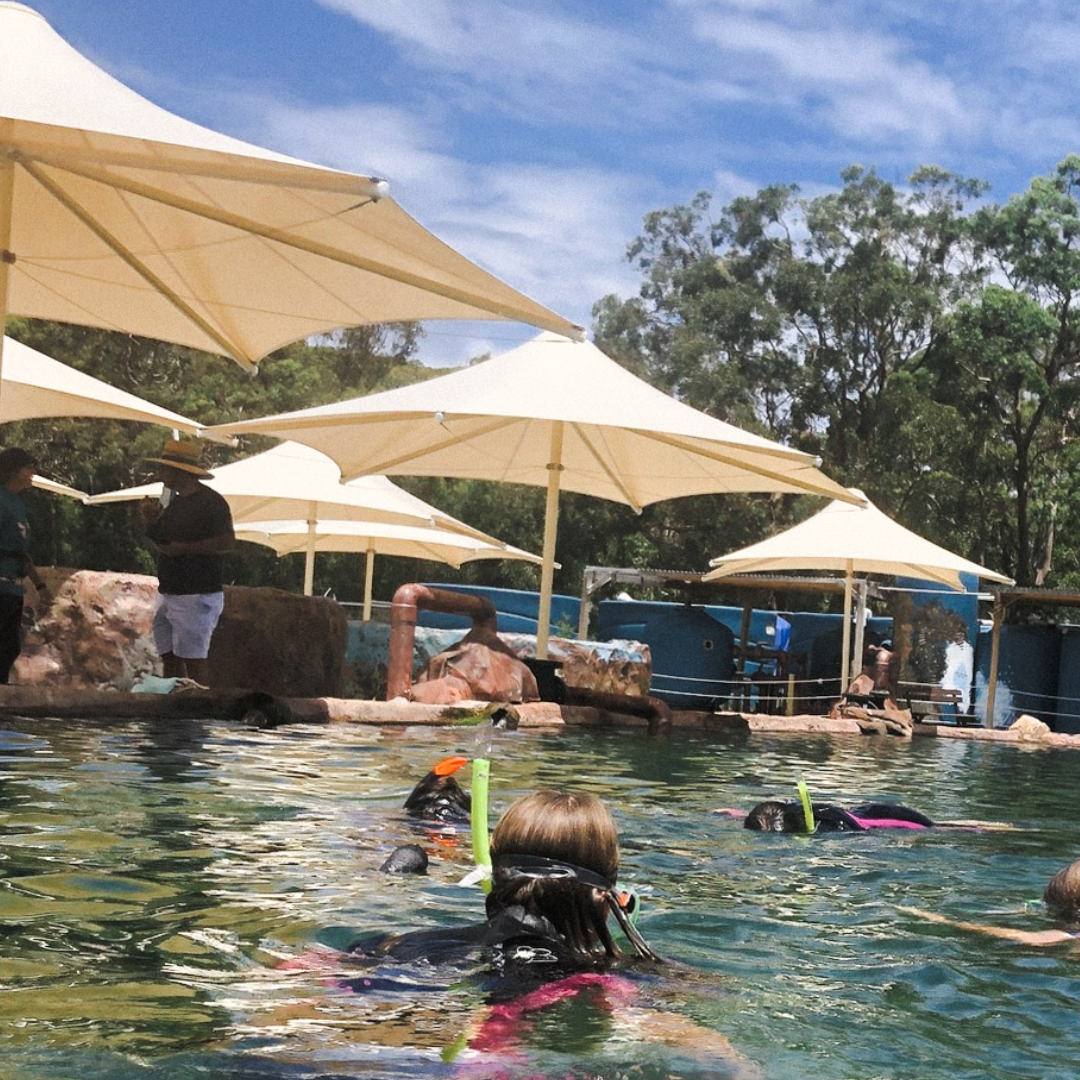

Superior UV protection and durablity
An architectural grade, high tensile Serge Ferrari PVC adds strength and style to the canopy. Purposefully designed for umbrellas, the canopy is pre-tensioned to prevent stretching and tearing after continuous use. The fabric has a distinctive smooth finish that is waterproof, heat reflective, and UV treated, keeping customers dry, cool and sun-safe.Specifications
Product Specifications
| Umbrella | Umbrella Size | Packaged Weight | ||
| Dimensions LxW | Clear Headroom – B | Height – A | Kg | |
| 2.4 x 2.4m Square | 2380 x 2380mm | 2250mm | 3410mm | 110kg |
| 3.0 x 3.0m Square | 3130 x 3130mm | 2250mm | 3340mm | 120kg |
| 3.5 x 3.5m Square | 3470 x 3470mm | 2250mm | 3285mm | 130kg |
| 4.0 x 4.0 Square | 3990 x 3990mm | 2250mm | 3480mm | 135kg |
| 4.4 Hexagonal | 3830 x 4415mm | 2250mm | 3325mm | 135kg |
| 5.0 Hexagonal | 4310 x 4960mm | 2250mm | 3350mm | 140kg |
| 5.6 Hexagonal | 4880 x 5610mm | 2270mm | 3445mm | 160kg |
| 4 x 3 Rectangular | 2950 x 3950mm | 2370mm | 3400mm | 150kg |
Other Features
| Size | 2.4 x 2.4m Square, 3.0 x 3.0m Square, 3.5 x 3.5m Square, 4.0 x 4.0m Square, 4.4 Hexagonal, 5.0 Hexagonal, 5.6 Hexagonal, 4 x 3m Rectangular |
|---|---|
| Material | A corrosion resistant structural aluminum frame, marine grade 316 stainless steel catenary cables and componentry. |
| Warranty | 10 Year Anti Rust, 5 Year Umbrella Skin, 5 Year Frame Warranty |
| Wind Resistance | 118kph fixed open |
| Column | Center column |
| Assembly | Weighing over 100kg the Horizon has been designed for permanent installation outdoors. |
| Maintenance | An additional PVDF coating ensures ease of cleaning making it ideal for commercial environments. A permanent UV surface treatment stabilises the colour pigment in the fabric to resist fading, and provides an Ultraviolet Protection Factor of 50+, blocking harsh UVA and UVB rays. |
Installation
- Base plate bolted and chemset on to a concrete footing/slab for permanent installation
- Under deck plate for deck mounted installation
- Concrete weighted portable base with casters
- Approved for owner install, or via a tradesperson, Skyspan certified installers and network partners.
Other Umbrella Options
-
Hotels and Resorts, Cantilever, Education, Hospitality and Cafes, Public Spaces and Parks
Vista Cantilever Retractable
Select options This product has multiple variants. The options may be chosen on the product page -
Aquatic centres and stadiums, Commercial and Tourism Venues, Education, Hospitality and Cafes, Hotels and Resorts, Public Spaces and Parks, Residential and Apartments, Skyspan
Sunset Heavy Duty Retractable Umbrella
Select options This product has multiple variants. The options may be chosen on the product page -
Hotels and Resorts, Hospitality and Cafes
Alfresco Cafe Commercial Umbrella
Select options This product has multiple variants. The options may be chosen on the product page
FAQs
What wind strength can the Horizon umbrellas handle?
The Horizon centre-column non-retractable umbrella has an engineered wind rating of 118km/h . That’s W31. The Horizon has anti-inversion cables to stabilise the umbrella in strong winds. The Horizon remains open and is recommended for use in a semi-protected settings.
Can you do canopy branding?
Yes we do branding on our commercial range. Once you have selected your canopy size and shade, share with us your design or logo, and we can arrange a digital printing quote
What are the colour & branding options
Both Frame and canopy are available in an extensive range of colours to compliment your outdoor space. A professional direct to canopy print service allows you to promote your brand on your umbrella with high quality, colour fast inks for accurate colour matching and resistance to fading.
